Amtrol EXTROL® Boiler System Expansion Tank EX-30, 4.4 Gallons

Original price was: $87.95.Current price is: $61.57.

SKU: Amtrol WBB2192052 Categories: Expansion Tanks & Vents, HVAC Components, Pumps & Circulators Tags: 100 psi, 240 °F, 4.4 gal, Amtrol, Gray, Heavy Duty Butyl/EPDM, HVAC & Fans, Steel

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

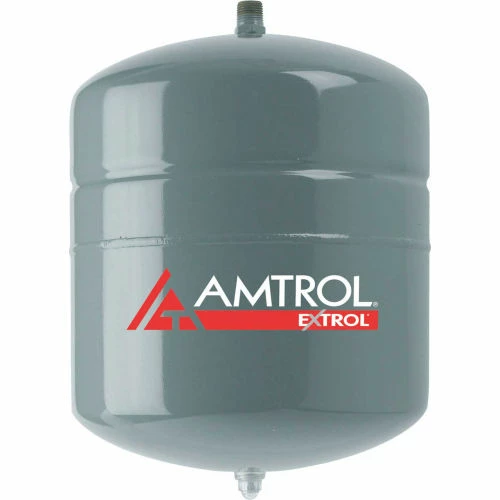

Amtrol EXTROL® Boiler System Expansion Tank EX-30, 4.4 Gallons

The EXTROL EX-30 Expansion Tank is pre-pressurized and features a diaphragm design. For use in closed, non-potable, hydronic heating systems. Accepts expanded water as system temperature rises to reduce pressure build-up. Helps reduce energy consumption and reduces system wear.

Features:

Factory pre-charge: 12 psig
Maximum working pressure: 100 psi
Maximum operating temperature: 240 degree F
Water tight reservoir for expanded water

Weight	8 lbs
Connection Size	1/2 in
Max Accepted Volume Gallons	0.5 gal
Height	16-1/2 in
Diameter	11-1/2 in
Tank Volume	4.4 gal
Color Family	Gray
Diaphragm Material	Heavy Duty Butyl/EPDM
Material	Steel
Max Operating Temperature	240 °F
Max Operating Pressure	100 psi
Manufacturers Part Number	EX-30
Respirator Connection Type	NPTM
Brand	Amtrol
Warranty	5 yr
