Sale!

Erie 24V Normally Closed Steam Actuator Without End Switch AG14A020

Original price was: $96.95.Current price is: $67.87.

SKU: Erie WBB850852 Categories: Fuel Valves, HVAC Components, Ignition & Combustion Components Tags: 24 V, 32 to 250 °F, 60 psi, Erie, HVAC & Fans, Silver, Stainless Steel, VS VALVES

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

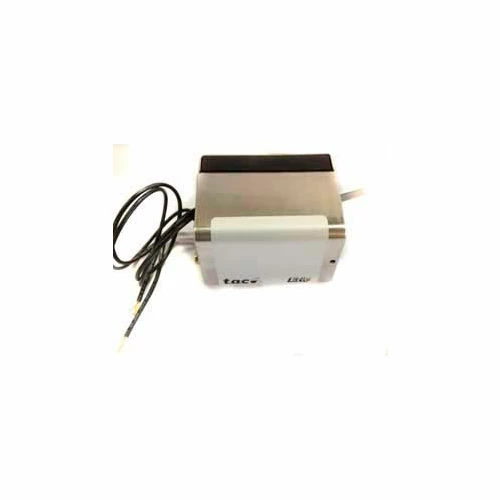

Erie 24V Normally Closed Steam Actuator Without End Switch AG14A020

Erie’s PopTop motorized hydronic valves provide convenient, reliable and easy installation for a variety of heating and cooling applications. Installation is a snap with easy, one-handed removal or engagement of the actuator to the valve body. Push the button and lift. It’s that simple. Made in the USA.

Actuator can be easily attached after the valve body has been installed into the system
Mounts quickly and easily without the need of linkages or calibration
Temperature Range: 32° to 250°F
18″ leads for actuators with end switches
Voltage – 24 Vac @ 50/60 Hz, 110 Vac @ 50 Hz and 120 Vac @ 60 Hz, 230 Vac @ 50 Hz, 240 Vac @ 60 Hz, 208 Vac @ 50/60 Hz., 277 Vac @50/60 Hz.
Up to 60 psi pressure differential close-off
Power Requirements 6.5 watts, 7.5 Va.
Control Signal – on/off, 2 position, spring return
Materials – stainless steel base plate, aluminum cover

Weight	1.2 lbs
Height	5-1/2 in
Depth	2-3/4 in
Width	3 in
Temperature Control Range	32 to 250 °F
Color Family	Silver
For Use With	VS VALVES
Voltage	24 V
Material	Stainless Steel
Pressure Differential	60 psi
Watts	6.5 W
Manufacturers Part Number	AG14A020
Brand	Erie
Warranty	1 yr
