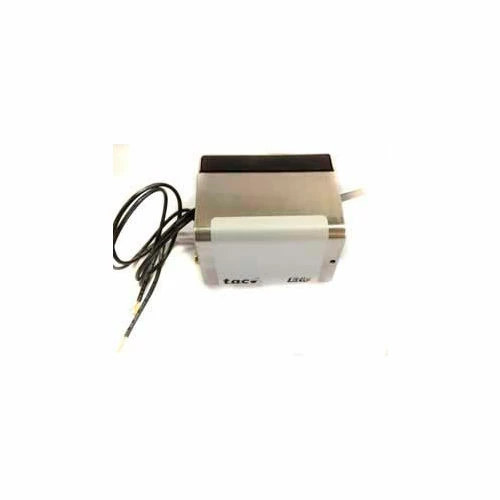

Erie 24V Normally Open, High Close Off Actuator Without End Switch AH23A020
Original price was: $108.95.$76.27Current price is: $76.27.
- Sustainable materials, for a better tomorrow.
- Efficiency meets excellence in customer care.
- Fast, friendly, always here to help.
- Buy Quality, Live Better
Erie’s PopTop motorized hydronic valves provide convenient, reliable and easy installation for a variety of heating and cooling applications. Installation is a snap with easy, one-handed removal or engagement of the actuator to the valve body. Push the button and lift. It’s that simple. Made in the USA.
- Actuator can be easily attached after the valve body has been installed into the system
- Mounts quickly and easily without the need of linkages or calibration
- Temperature Range: 32° to 200°F
- 18″ leads for actuators with end switches
- Voltage – 24 Vac @ 50/60 Hz, 110 Vac @ 50 Hz and 120 Vac @ 60 Hz, 230 Vac @ 50 Hz, 240 Vac @ 60 Hz, 208 Vac @ 50/60 Hz., 277 Vac @50/60 Hz.
- Up to 60 psi pressure differential close-off
- Power Requirements 6.5 watts, 7.5 Va.
- Control Signal – on/off, 2 position, spring return
- Materials – stainless steel base plate, aluminum cover
| Weight | 2.2 lbs |
|---|---|
| Height | 5-1/2 in |
| Depth | 2-3/4 in |
| Width | 3 in |
| Temperature Control Range | 32 to 200 °F |
| Color Family | Silver |
| For Use With | VT VALVES |
| Voltage | 24 V |
| Material | Stainless Steel |
| Watts | 6.5 W |
| Pressure Differential | 75 psi |
| Manufacturers Part Number | AH23A020 |
| Brand | Erie |
| Warranty | 1 yr |
