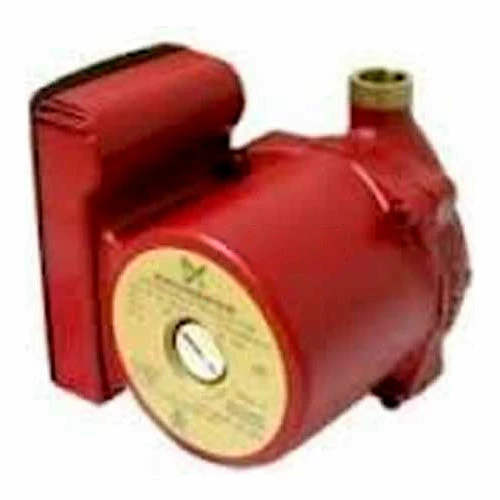

Grundfos UP15-10B5 Circulator Water Pump 59896213, Bronze, 115V, 1/25 HP

Original price was: $412.61.Current price is: $94.99.

SKU: Grundfos WBB1012665 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 1, 104 °F °F, 2 μF/400 V, 219.2°F °F, 25 W, 9H, Grundfos, HVAC & Fans

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Grundfos UP15-10B5 Circulator Water Pump 59896213, Bronze, 115V, 1/25 HP

The Grundfos circulator pumps, Series UP, are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air-conditioning systems.

Features:

Bronze and stainless steel construction.
Wet rotor design.
Composite impeller.
Eliminates and prevents corrosive effects of fresh water.
Maintenance-free, low energy consumption, easy to install, quiet running.
Improved performance and efficiency.
Pre-program usage times to save power.
No additional wiring required.
Adds to savings by operating pump by sensing the water temperature with optional timer and aquastat.
Made in the USA.

Weight	5.30 lbs
Max Amps	0.22 A
Brand	Grundfos
Horsepower	1/25 HP
Color Family	Red
Hertz	60 Hz
Min Fluid Temperature	35.6° °F
Thermal Protection	Internal
Number of Poles	2
Manufacturers Part Number	59896213
Voltage	0.22 V
Max Power Input	25 W
Housing Material	Bronze
System Type	Open
Warranty	1 yr
Certifications	UL, CSA
Respirator Connection Type	Bronze Sweat
Ambient Max Temperature @ 176°F Liquid	176 °F °F
Head	0-6.23 ft
Max Fluid Temperature	219.2°F °F
Pipe Connection	1/2 Sweat in
Height	5 in
Width	4-2/3 in
Length	3-1/2 in
POS Term Box	9H
Max Ambient Temperature	104 °F °F
Max Watts	25 W
Impeller Material	Composite, PES
Run Capacitor Size	2 μF/400 V
Number of Speeds	1
Motor Protection	Contact
Pressure	145 psi
Port to Port Length	5 in
Flow	0-8.37 gal/min
Flange Standard	USA Sweat
