Grundfos UP43-75BF Circulator Water Pump 52722370, Bronze, 115V, 1/6 HP

Original price was: $408.00.Current price is: $93.99.

SKU: Grundfos WBB1012655 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 1, 10 μF/180 V, 104 °F °F, 230°F °F, 9H, Contact, Grundfos, HVAC & Fans

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

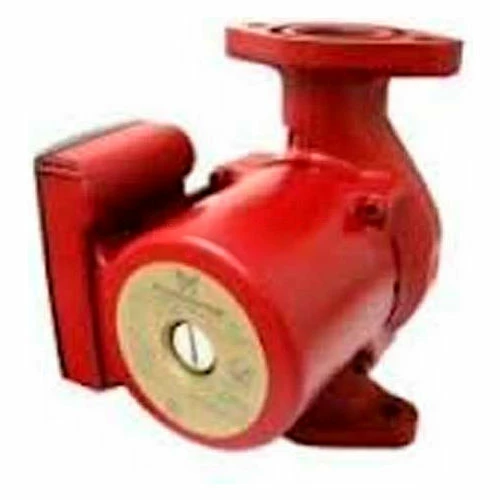

Grundfos UP43-75BF Circulator Water Pump 52722370, Bronze, 115V, 1/6 HP

Grundfos UP43-75BF is a single-speed bronze circulator pump designed for use in a large number of heating, hot and cold water recirculation applications. Bronze housing of the Grundfos UP43-75BF model offers superior corrosion protection.

Features:

GF 40/43 flange connections (1-1/2″)
Ceramic shaft and radial bearings
Carbon axial bearing
Stainless steel rotor can and bearing plate
Corrosion-resistant impeller, Composite, PES
Bronze pump housing.
Made in the USA.

Weight	14.10 lbs
Manufacturers Part Number	52722370
Certifications	UL, CSA
Warranty	1 yr
System Type	Open
Housing Material	Bronze
Max Power Input	215 W
Voltage	115 V
Number of Poles	2
Thermal Protection	Internal
Min Fluid Temperature	32° °F
Hertz	60 Hz
Color Family	Red
Horsepower	1/6 HP
Brand	Grundfos
Respirator Connection Type	Bronze Flange
Ambient Max Temperature @ 176°F Liquid	176 °F °F
Head	0-24.9 ft
Max Fluid Temperature	230°F °F
Pipe Connection	2 – Bolt Flange in
Height	8-1/2 in
Width	6-2/3 in
Length	5-1/4 in
POS Term Box	9H
Max Ambient Temperature	104 °F °F
Run Capacitor Size	10 μF/180 V
Phase	1
Number of Speeds	1
Motor Protection	Contact
Pressure	145 psi
Port to Port Length	8-1/2 in
Flow	0-40.9 gal/min
Impeller Material	Composite, PES
Flange Standard	USA Oval
