Grundfos UPS15-42F Circulator Water Pump 59896180, Cast Iron, 220V, 1/25 HP, 3 Speeds

Original price was: $239.95.Current price is: $96.99.

SKU: Grundfos WBB1012664 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 104 °F °F, 2 μF/400 V, 230°F °F, 3, 9H, Contact, Grundfos, HVAC & Fans

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

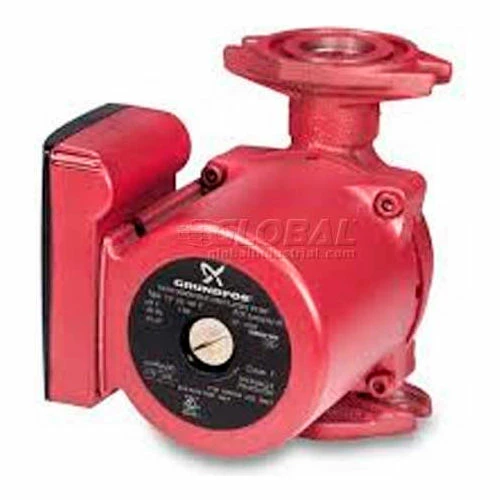

Grundfos UPS15-42F Circulator Water Pump 59896180, Cast Iron, 220V, 1/25 HP, 3 Speeds

Grundfos Series UP circulators are engineered to meet the demands of residential hot water and heating systems applications. The UPS 15-42 F works in a variety of closed loops applications variety of open and closed loop applications Features:

UPS Closed System 3-Speed Circulator Pump
Automatic resetting thermal protection
Multiple accessories for a variety of applications
Whisper-quiet operation for sound sensitive installations
Pump Connection: GF 15/26 Flange
Made in the USA.

Weight	4.40 lbs
Manufacturers Part Number	59896180
Certifications	UL, CSA
Warranty	1 yr
System Type	Closed
Housing Material	Cast Iron
Max Power Input	92 W
Voltage	230 V
Number of Poles	2
Thermal Protection	Internal
Min Fluid Temperature	35.6° °F
Hertz	60 Hz
Color Family	Red
Horsepower	1/25 HP
Brand	Grundfos
Respirator Connection Type	Cast Iron Flange
Ambient Max Temperature @ 176°F Liquid	176 °F °F
Head	0-15.4 ft
Max Fluid Temperature	230°F °F
Pipe Connection	2 – Bolt Flange in
Height	6-1/2 in
Width	5-1/4 in
Length	4 in
POS Term Box	9H
Max Ambient Temperature	104 °F °F
Run Capacitor Size	2 μF/400 V
Phase	1
Number of Speeds	3
Motor Protection	Contact
Pressure	145 psi
Port to Port Length	6-1/2 in
Flow	0-17.6 gal/min
Impeller Material	Composite, PES
Flange Standard	USA Oval
