Grundfos VersaFlo® UPS32-160 Circulator Pump 96402730, Cast Iron, 115V, 3/4 HP

Original price was: $477.00.Current price is: $94.99.

SKU: Grundfos WBB1012634 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 1.30H, 104 °F °F, 248°F °F, 3, 60 μF/250 V, 625 W, Grundfos, HVAC & Fans

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

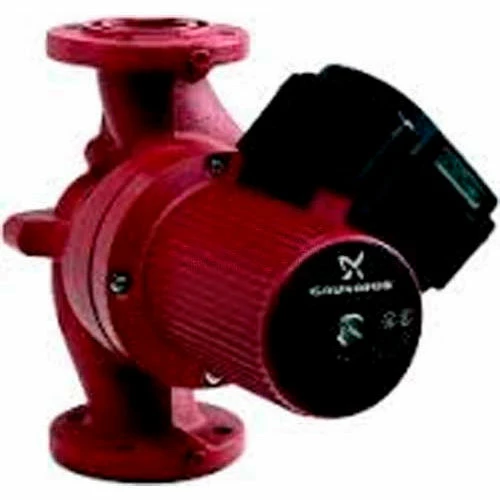

Grundfos VersaFlo® UPS32-160 Circulator Pump 96402730, Cast Iron, 115V, 3/4 HP

Grundfos VersaFlo UPS circulators are designed for circulation of liquids in heating and air conditioning systems. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation as well as other system applications.

Features:

3 Speed Motor Technology
Reduces Noise & Power Consumption
Exclusive Wet Rotor Technology Up To 3 HP
Built-In Motor Protection For Long Life
Whisper Quiet
30 Month Warranty
Direct Cross Over
Cross reference to B&G Series 60 & 80
Cross reference to Taco Series 1600
Cross reference to Armstrong Series H, 1050, 1060
Maintenance Free
No Mechanical Seal
Water Cooled Motor
Leak Proof
Made in the USA.

Weight	36.96 lbs
Flow	9-76 gal/min
Warranty	1 yr
Housing Material	Cast Iron
Number of Poles	2
Voltage	5.8 V
Max Amps	5.8 A
Thermal Protection	Internal
Min Fluid Temperature	14° °F
Color Family	Red
Horsepower	3/4 HP
Max RPM	3450 rpm
Brand	Grundfos
Manufacturers Part Number	96402730
Phase	1
Impeller Material	Stainless Steel
Head	1-45 ft
ISTART Amps	14.6 A
Port to Port Length	13-1/2 in
Pressure	145 psi
Motor Protection	Contact
Number of Speeds	3
Run Capacitor Size	60 μF/250 V
Max Watts	625 W
Max Fluid Temperature	248°F °F
Max Ambient Temperature	104 °F °F
POS Term Box	1.30H
Width	12-1/4 in
Length	6 in
Height	13-1/2 in
Pipe Connection	32 in
Flange Standard	USA Oval
