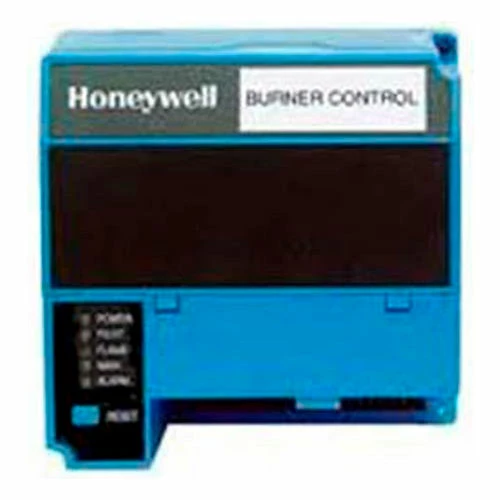

Honeywell On-Off Primary Control With VPS RM7898A1000, Shutter Drive, Programmable Post-Purge

Features

• Microprocessor-based integrated full-function primary burner control for automatically fired gas, oil, or combination fuel single burner applications. Provides level of safety, functional capability and features beyond conventional controls. Include Programmable Post-Purge and Valve Proving Feature
• Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting
• Subbase, amplifier and purge card are required for operation
• Options include PC interface, keyboard display module, DATA CONTROLBUS™ MODULE, remote display module, first-out expanded annunciator, and COMBUSTION SYSTEM MANAGER™ software
• Programmable Post-Purge
• Five LEDs provide sequence information. Power LED Blinks Fault code on safety shutdown
• Interchangeable plug-in flame amplifiers
• Local or remote annunciation of operation and fault information
• Nonvolatile memory retains history files and sequencing status after power loss
• Optional remote reset capability
• Optional report generation
• Selectable recycle or lockout on loss of airflow or flame
• Shutter drive output
• Airflow switch check
• Programmable Post-Purge and Valve Proving feature with S7800A1142 Keyboard Display (not supplied)
