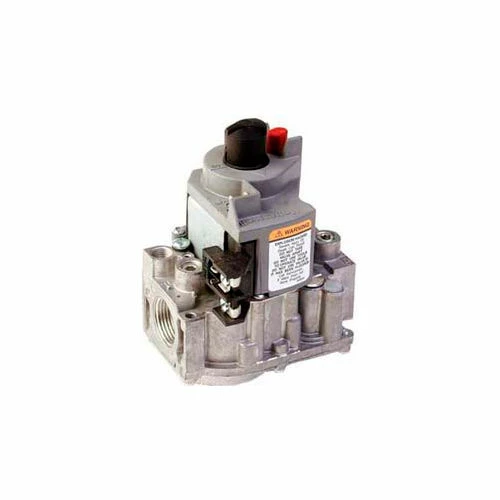

Honeywell Tradeline Dual Standing Pilot Gas Valve VR8300A3500, W/ 1/2"X3/4" Standard 35" Wc

Original price was: $185.95.Current price is: $97.99.

SKU: Honeywell WBB394633 Categories: Fuel Valves, HVAC Components, Ignition & Combustion Components Tags: 190000, 30000, Dual Standing Pilot Gas Valve, Honeywell, HVAC & Fans, Standard, Standing Pilot, Straight Through w/ Integral Tapping and Flange

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

1/2″ x 3/4″ Standing Pilot With LP Kit

Combination gas control for use in 24 VAC, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
Compact size.
Provide two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meets codes requiring dual safety shutoff.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
All adjustments, wiring connections and pilot outlet are accessible from top of control.
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Compatible with ECO connector.
LITE-RITE (OFF-PILOT-ON) lighting sequence.

Outlet Size	3/4 in
Inlet Size	1/2 in
Type	Straight Through w/ Integral Tapping and Flange
Opening Type	Standard
BTU/hr Max	190000
BTU/hr Min	30000
Ignition Type	Standing Pilot
Description	Dual Standing Pilot Gas Valve
Max Operating Pressure	1/2 psi
Manufacturers Part Number	VR8300A3500
Fuel Type	Natural Gas
Brand	Honeywell
Warranty	1 yr
