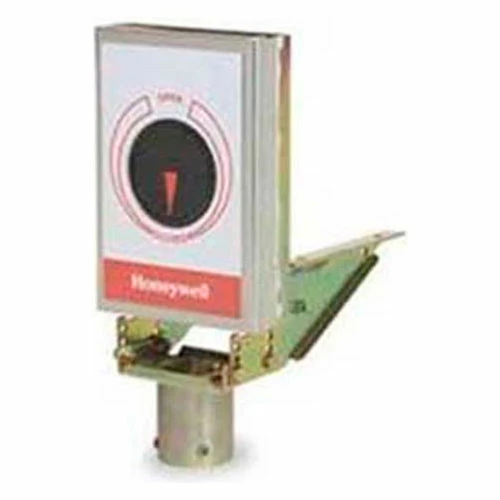

Honeywell Valve Linkage For Modutrol III & IV™ Motors Q5001D1018, 160 Or 320 Lbs. Stem Force

Features

The Q5001 Valve Linkage connects a Modutrol Motor to a 2- or 3- way valve. It is used primarily on V5011 or V5013 steam and water valves
Q5001 Valve Linkage is applicable to 2-Way or 3-Way valves in modulating or two-position service
Linkage requires no adjustment when used with Honeywell valves and Modutrol IV™ Motors
Q5001 Valve Linkage replaces Q601 and Q618 Valve Linkages
Linkage mounts directly to the valve bonnet; motor mounts to linkage bracket
Easy-to-read position indicator
Valve stem lift height cam selectable
Over travel permits tight close-off without excessive motor strain
Available brackets make linkages adaptable to many valve bodies
Models available with 80 lb, 160 lb, and 320 lb stem force
Reversible cams on the Q5001 allow field selection of normally open or normally closed valve operation
All models have anti-spin clips
Made in the USA

Weight	7.25 lbs
Stroke	3/4 in
Height	5-1/2 in
Bonnet Size	1-3/8
Length	11 in
Width	8-2/5 in
Type	Damper & Valve Linkage
For Use With	Valve sizes up to 3"; V5011/V5013; Modutrol IV™ Motors
Includes	1-3/8" Valve Bracket & Anti-Spin Clip
Description	Valve Linkage For Mod Iv Motors With 160 Or 320 Lb Stem Force & Up To 3" Valves
Manufacturers Part Number	Q5001D1018
Brand	Honeywell
Warranty	1 yr
