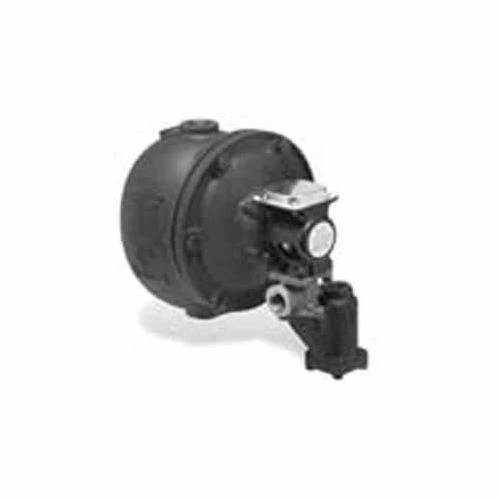

McDonnell & Miller Series 53 Mechanical Water Feeder/Low Water Cut-off

For low pressure steam and hot water boilers larger than 5,000 sq. ft. (465m2) with hot or cold water feed. Optional features – No. 2 switch – Manual reset – Float block. Proportional feed action. Model 53 can be field upgraded with a No. 2 switch to add low water cut-off function. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 75 psi (5. 3 kg/cm2). Made in the USA.

Weight	38 lbs
Height	10-3/8 in
Depth	12 in
Type	Mechanical Water Feeders/Low Water Cut-off
Max Vessel Pressure	75 psI
Series	53
For Use With	Low Pressure Steam And Hot Water Boilers With Hot Or Cold Water Feed
Max Water Supply Pressure	150 psi psi
Manufacturers Part Number	136900
Max Inlet Water Temperature	120°F (49°C)
Brand	McDonnell & Miller
Warranty	1 yr
