Suntec Single Stage Fuel Pump A2RA-7736, RH-RH, 3450 RPM, 2.5 GPH, 100 psi

Original price was: $220.95.Current price is: $96.99.

SKU: Suntec WBB922630 Categories: Fuel Oil Pumps, HVAC Components, Pumps & Circulators Tags: 100 psi, 2.5 gal/hr, A2RA-7736, Black, HVAC & Fans, RH-RH, Single Stage, Suntec

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

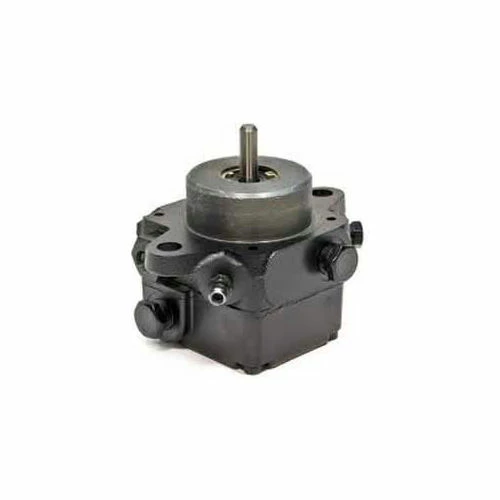

Suntec Single Stage Fuel Pump A2RA-7736, RH-RH, 3450 RPM, 2.5 GPH, 100 psi

Features:

Single-Pipe Installations To 6″ Hg. Vacuum
Two-Pipe Installations To 12″ Hg. Vacuum
Lift Or Gravity Feed Applications With 10 psi Maximum inlet/return pressure
Choice Of 1725, 2850, 3450 Rpm
Suitable For No. 2, No. 1 Fuel Oil, Or Kerosene
Mounting In Any Position
Factory-Set At 100 psi
Adjustable Range 100-150 psi At 3450 Rpm, 100-135 psiat 1725 Rpm. Models Available To 200 And 300 psi.
NOTE: Rotation (RH = CW) & nozzle location determined by looking at the shaft when unit is oriented with shaft horizontal and decal readable (regulator valve on top).
Made in the USA.

Click for Installion Details
Click for Brochure

Weight	4.2 lbs
Height	4-3/5 in
Depth	4-11/20 in
Width	3-5/8 in
Rotation & Nozzle Location	RH-RH
Color Family	Black
Nozzle Capacity @ Rated PSI	2.5 gal/hr
Rated Pressure	100 psi
Manufacturers Part Number	A2RA-7736
Pump Type	Single Stage
Brand	Suntec
Shaft Speed	3450 rpm
Warranty	1 yr
