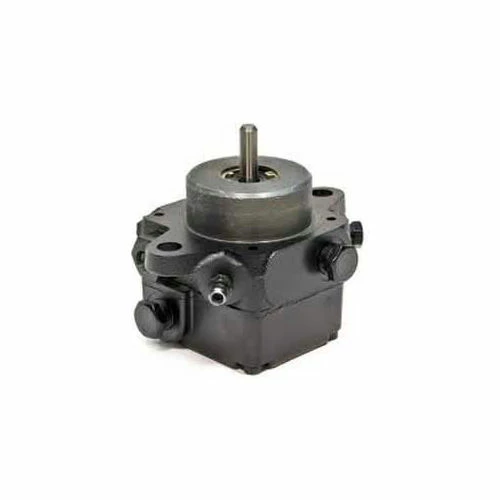

Suntec Two Stage Fuel Pump B1VA-8212B, RH-RH, 1725 RPM, 3 GPH, 100 psi

Original price was: $312.95.Current price is: $91.99.

SKU: Suntec WBB922637 Categories: Fuel Oil Pumps, HVAC Components, Pumps & Circulators Tags: 100 psi, 3 gal/hr, B1VA-8212B, Black, HVAC & Fans, RH-RH, Suntec, Two Stage

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Suntec Two Stage Fuel Pump B1VA-8212B, RH-RH, 1725 RPM, 3 GPH, 100 psi

Features:

Two-pipe installations up to 17″ hg. vacuum
Lift or gravity feed applications with 10 psi maximum Inlet/Return Pressure
Capacities to 7 GPH, except boost pumps
Factory-set at 100 psi
Pressure adjustable from 100 to 150 psi at 3450rpm, 100 to 135 psi at 1725 rpm. Modelsavailable to 200 and 300 psi
Choice of 1725, 2850, 3450 rpm
Suitable for no.2, no.1 fuel oil, or kerosene
Mounting in any position except upside down
NOTE: Rotation (RH = CW) & nozzle location determined by looking at the shaft when unit is oriented with shaft horizontal and decal readable (regulator valve on top).
Made in the USA.

Click for Installion Details
Click for Brochure

Weight	4.2 lbs
Height	4-3/5 in
Depth	4-11/20 in
Width	3-5/8 in
Rotation & Nozzle Location	RH-RH
Color Family	Black
Nozzle Capacity @ Rated PSI	3 gal/hr
Rated Pressure	100 psi
Manufacturers Part Number	B1VA-8212B
Pump Type	Two Stage
Shaft Speed	1725 rpm
Brand	Suntec
Warranty	1 yr
