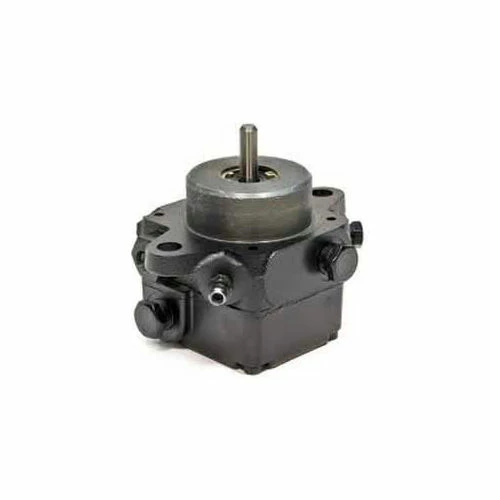

Suntec Two-Stage High Capacity High Pressure Fuel Pump B2TA-8245, RH-RH, 3450 RPM, 16 GPH, 300 psi

Original price was: $360.95.Current price is: $96.99.

SKU: Suntec WBB922638 Categories: Fuel Oil Pumps, HVAC Components, Pumps & Circulators Tags: 16 gal/hr, 300 psi, B2TA-8245, Black, HVAC & Fans, RH-RH, Suntec, Two Stage

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Suntec Two-Stage High Capacity High Pressure Fuel Pump B2TA-8245, RH-RH, 3450 RPM, 16 GPH, 300 psi

Features:

Two-pipe installations up to 17″ hg. vacuum
Lift or gravity feed applications with 10 psi maximum Inlet/Return Pressure
Adjustable manual or automatic high/low firing
High efficiency burner applications
Capacities to 23 GPH
Pressure adjustable (100 to 200 psi low fire, 200-300psi high fire)
For no. 2 fuel oil. For other fuels, consult factory
Two-bolt flange mounting in any position exceptupside down.
NOTE: Rotation (RH = CW) & nozzle location determined by looking at the shaft when unit is oriented with shaft horizontal and decal readable (regulator valve on top).
Made in the USA.

Click for Installion Details
Click for Brochure

Weight	4.2 lbs
Height	4-3/5 in
Depth	4-11/20 in
Width	3-5/8 in
Rotation & Nozzle Location	RH-RH
Color Family	Black
Nozzle Capacity @ Rated PSI	16 gal/hr
Rated Pressure	300 psi
Manufacturers Part Number	B2TA-8245
Pump Type	Two Stage
Brand	Suntec
Shaft Speed	3450 rpm
Warranty	1 yr
